E600 & F900 Cover and Frame

Airpark F900 Cover and Frame

Description

• The entire cover and frame hinge open.
• The lid opens to 140 º
• The lid can be removed from opening under 90 degrees and pulling straight up.
• Includes latch bolt.

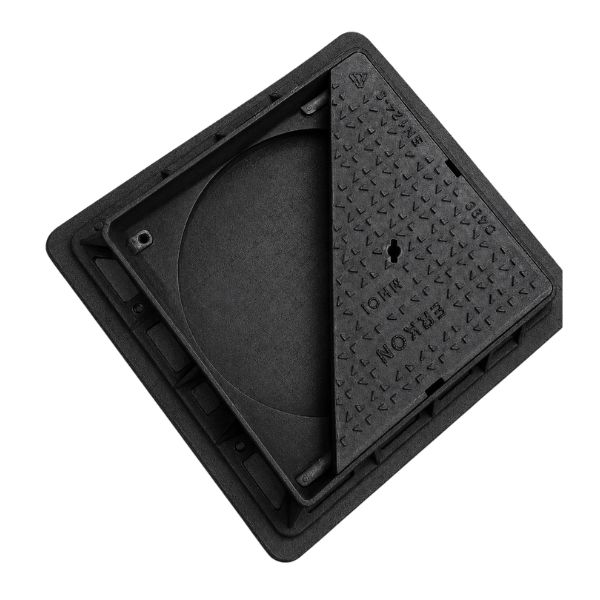

DCC Spec 600 x 600 with Round Opening D400 and E600 Cover and Frame

Description

• D400 (40-tonne) or E600 (60-tonne) multi-tri manhole cover and frame, suitable for highways and commercial or industrial areas.
• Manufactured from EN-GJS-500-7 spheroidal graphite iron, with a temporary bitumen-based protective coating.
• Independently third-party certified to BS EN 124-2:2015, with a non-rock three-point suspension system.
• Available with 100 mm or 150 mm frame depth, optional locking and customised badging; interchangeable covers feature an anti-skid, free-draining surface.

EURO ESTRELLA

Mod. R-21 E-600

E-600 | UNE-124

Description

• Tensile strength 60t
• TOP FOR GREAT STRENGTH AND LONG LIFE.
• By design, weight, thickness and mechanical guarantee.
• RESISTANCE, GOOD AND QUIET SETTLEMENT non-slump.
• More than 40 years.
• UNE EN-124-E600.
• Tensile strength: 600Kn
• Machining cover and frame. Perfect fit without gasket.
• To intense rolling areas. Quiet and safe.

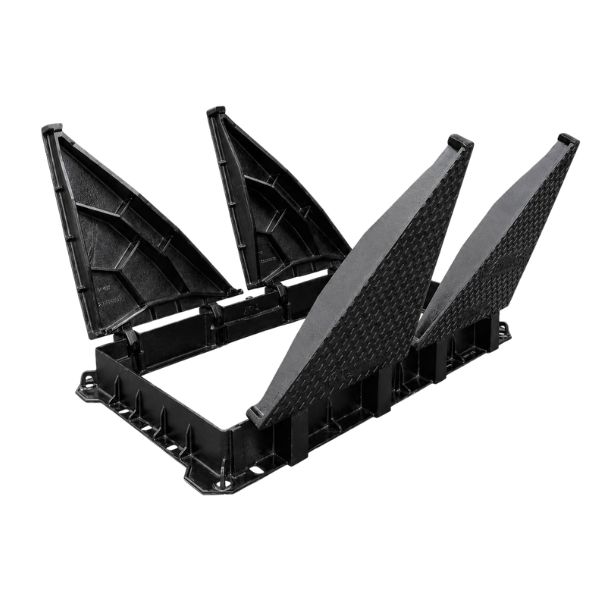

Toronto E600 Hinged and Locked Cover and Frame

Description

• Heavy-duty E600 cover and frame for airports, seaports and high-volume traffic areas.
• Triangular hinged covers open to 110°, with automatic safety locking at 90°.
• Partial, sequential opening provides clear access from two or three sides.
• Lockable, non-slip covers with flanged frame and anchoring points for secure installation.
