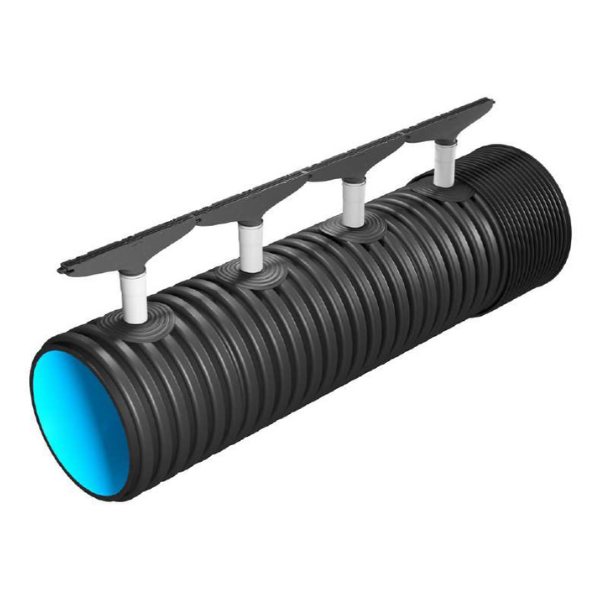

UTube Slotted Drainage Channel

UTube Slot Drain

Quick and Easy to Istall

Description

UDrain: the new drainage product line to overcome the traditional concept of channels.

A complete range includes products used for major works, a retail product line and products for the do-it- yourself.

UDrain is the perfect solution for all applications, from lower classes of load to installations in airport areas. It allows to catch and drain a huge amount of water which reaches the cone’s slot at high speed, for example for a surface with slope.

Thanks to the possibility to choose pipes with different diameters, we can obtain the capacity of drainage of a big channel using a small grating which, with its small width, will result in a very discreet presence. Furthermore, the connection of the water collection element to the pipe allows direct access to the sewer system eliminating the passage of the drainage channel.

Download Data Sheet

UTube Slot Drain Design Benefits

HDPE section made from 100% recycled material.
Full range of sizes and fittings from 100 – 600mm wide
Channel manufactured to SN6, with a predicted design life over 60 years
Steel throat section can withstand higher vertical loads and shear forces.
Smooth bore, giving excellent hydraulic properties.
Longer lengths, resulting in fewer joints and improved installation quality.
Reduced weight for savings on transport and installation costs, with the added benefit of improved Health & Safety.
Custom lengths available to prevent wastage on site
The aesthetically pleasing, sleek modern steel or cast iron top is ideal for schemes where attention to detail is paramount.
Easily specifiable with a dedicated design service.
Ease of installation with interlocking sections
From loading A15 to F900
